01
The workflow you know
Command line with clickable keywords, AutoComplete and aliases; object snaps, polar tracking, ortho, direct distance entry, grips, window and crossing selection — decades of drafting habit, respected.
01 / CADCraft CAD & drafting · Early development
01 CADCraft
L’application de DAO que vous connaissez déjà par cœur.
Type L, click two points, type @5<45, press Enter. The command line, object snaps, layers, dimensions, hatches and blocks — a free, open-source AutoCAD alternative written entirely in Rust and compiled to WebAssembly. It opens and writes DXF, opens and saves DWG, plots to PDF, needs no account, never uploads your drawings, and works offline. Open the CADCraft editor — free and open source.
Runs in your browser — free and open source
02 / Fonctionnalités
Ce qu’il contient.
02
Draw and modify everything
LINE, PLINE, CIRCLE, ARC, RECTANG, POLYGON, ELLIPSE, SPLINE, TEXT, MTEXT — then MOVE, COPY, ROTATE, MIRROR, OFFSET, TRIM, EXTEND, FILLET, CHAMFER and arrays, non-destructively where it matters.
03
Annotate like a drafter
All DIM* commands with full DIMSTYLE variables and every arrowhead, associative dimensions that follow geometry, MLEADER, TABLE, TrueType fonts and MTEXT formatting codes.
04
Real drawing files
DXF read and written natively (ASCII and binary, R12–2018); DWG R13–2018 opens and saves through the open acadrust library; PDF plotting plus SVG and PNG export.
05
Agent-native
Every menu item, tool and prompt is a command: agents can type at the command line exactly like a person, call commands with JSON, inspect the drawing and render it — over MCP or the JSON control channel.
06
Parametric when you want it
Geometric and dimensional constraints with expressions and conflict detection; constraints re-solve after every edit, so a bracket stays a bracket when you drag it.
03 / Made for
De la vraie DAO, dans un onglet du navigateur.
01

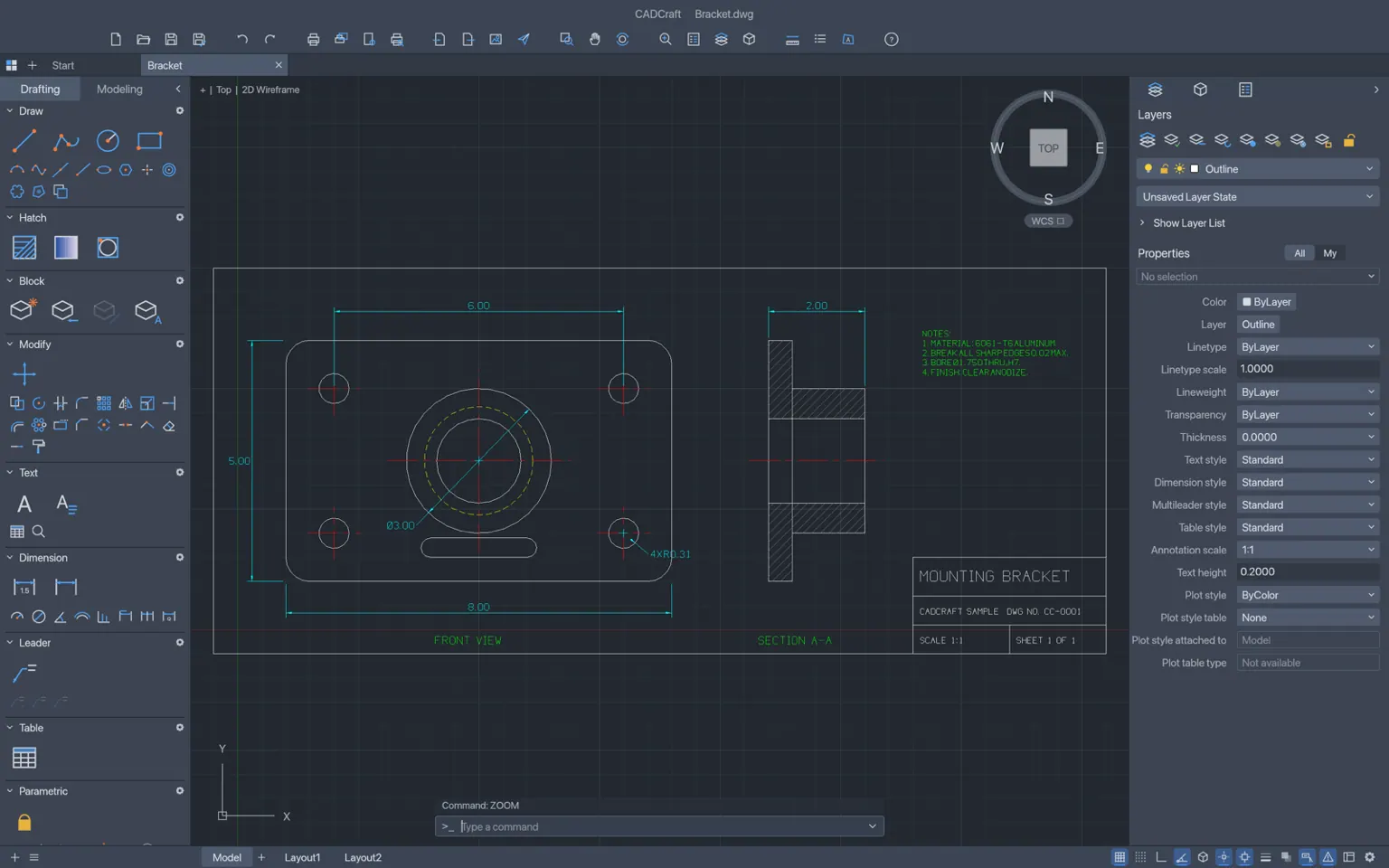

Document a part
Two views with centre lines, hidden lines, an ANSI31 section hatch, dimensions and a title block — plotted to PDF straight from the tab.
02

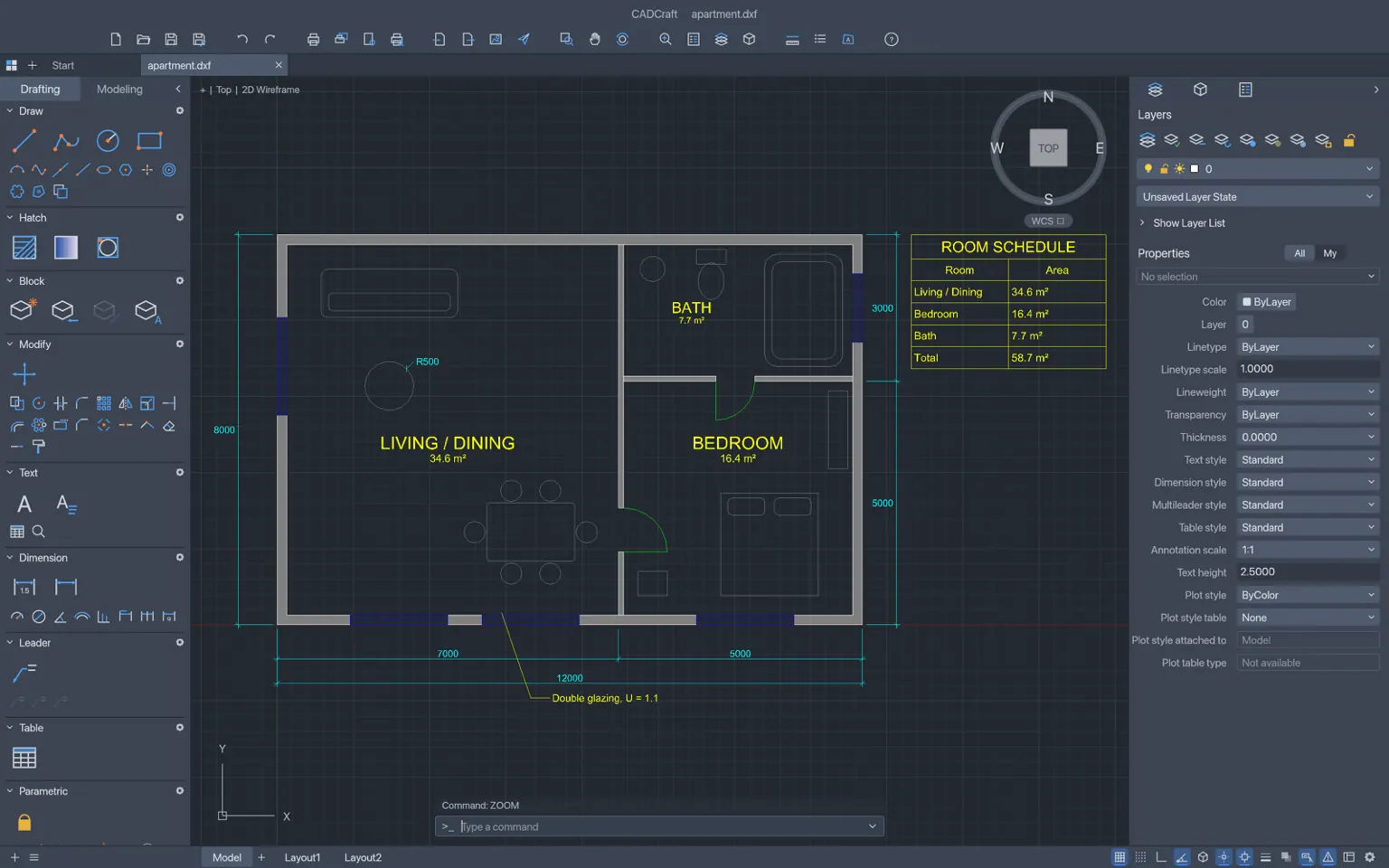

Draw a floor plan

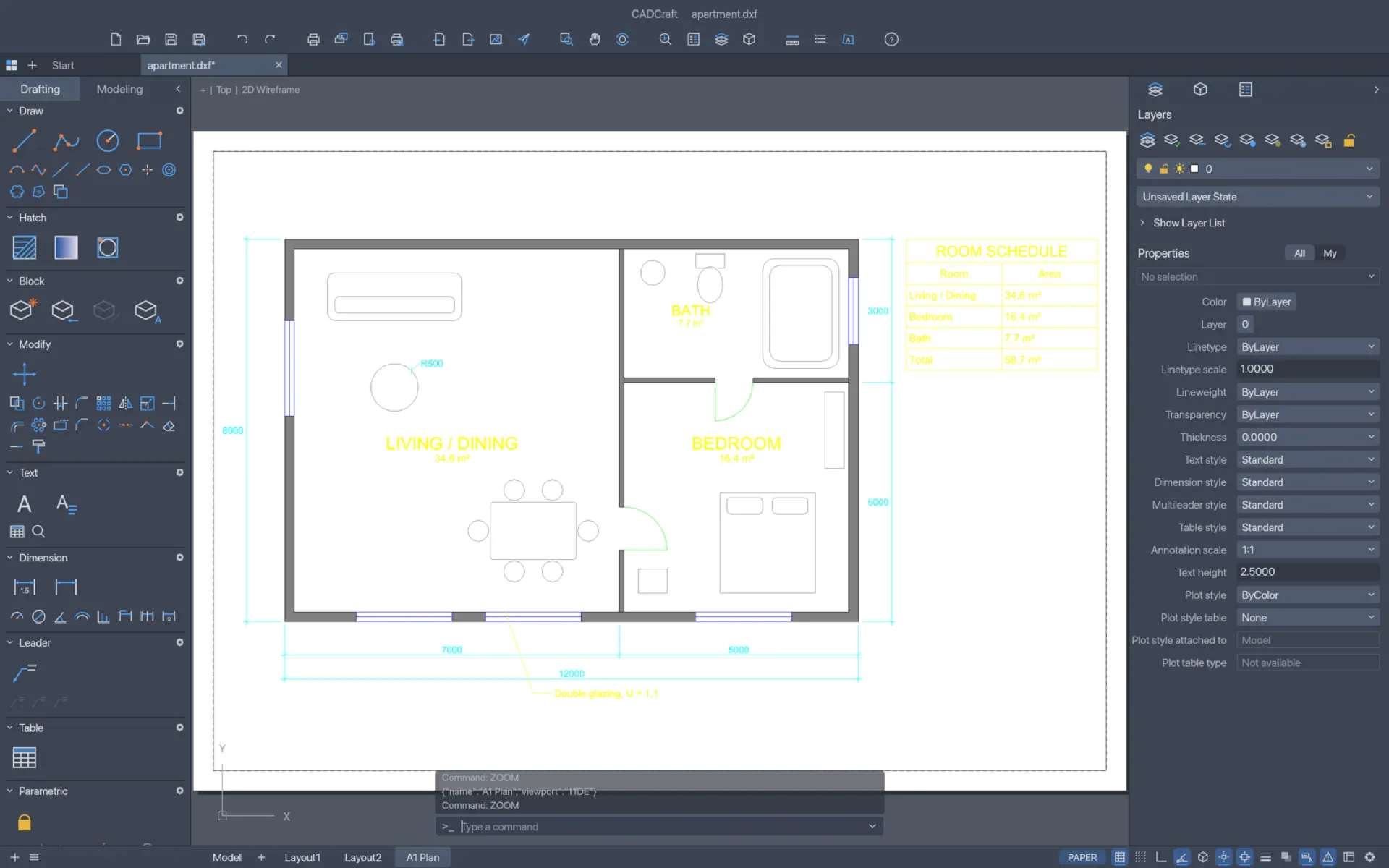

Walls on their own layers, hatched rooms, associative dimensions, a paper-space layout with a scaled viewport — and the DWG the site surveyor sent opens as-is.
03
Fix a client's DXF
Open the file they emailed, correct a dimension, re-hatch a section, plot a fresh PDF — no install, no licence server, nothing uploaded.
04 / Fonctionnement
Dessinez un plan en cinq étapes.
- 01
Ouvrir un onglet
CADCraft boots in the browser — no download, no account. Start an empty drawing or open a DXF/DWG straight from your device.
- 02
Configurer les calques
Layers for walls, dimensions and hatches with colour, linetype and lineweight — the Layer Properties Manager works the way it always has.
- 03
Dessiner avec la ligne de commande
Type the command, answer the prompts, use object snaps and polar tracking; direct distance entry and @-coordinates for exact geometry.
- 04
Annoter
Associative dimensions with your DIMSTYLE, hatches with islands, text and blocks with attributes — all following the geometry as it changes.
- 05
Tracer et livrer
Lay out a sheet with a scaled viewport, PLOT to PDF, or export SVG and PNG — all written by the engine’s own Rust code.
05 / Fichiers
Des dessins qui reviennent à leur origine.
| Format | Support | Notes |
|---|---|---|
| DXF | read + write | ASCII and binary, R12–2018 in; R2000 out — dimension styles, associativity, tables and constraints carried |
| DWG | read + write | R13–2018 through the open-source acadrust library |
| plot | paper-space PLOT and EXPORTPDF from layouts and page setups | |
| SVG, PNG | export | vector and raster hand-offs |
| TrueType fonts | read | .ttf, .otf and .ttc collections, plus our single-stroke drafting font |
06 / Précision
Accrocher, suivre, contraindre.
Object snaps — endpoint, midpoint, centre, node, quadrant, intersection, insertion, perpendicular, tangent, nearest, with deferred tangent and perpendicular for the first point of a line — polar tracking, ortho and grid snap for entry, and parametric geometric and dimensional constraints with expressions for the geometry that must not drift.
07 / Captures
Capturé dans CADCraft.
08 / Obtenir CADCraft
Rien à installer.
Ouvrir un onglet
The whole drafting workstation, compiled to WebAssembly — no download, no installer, no account. It boots like a web page and drafts like a native app.
Lancer l’éditeurFonctionne hors ligne
Install it as an app from your browser and CADCraft keeps working without a connection — the shell, the engine and your last drawing are cached on your device.
Vos dessins restent les vôtres
DXF and DWG open from and save back to your device. Nothing is uploaded — there is no server to upload to.
09 / FAQ
Questions, réponses.
CADCraft est-il vraiment gratuit ?
Yes. CADCraft is free and open source under MIT OR Apache-2.0 — no account, no subscription. The browser build needs no install.
Peut-il ouvrir des fichiers DXF et DWG ?
Yes. DXF is read and written natively (ASCII and binary, R12 through 2018), and DWG files R13–2018 open and save through the open-source acadrust library.
A-t-il la ligne de commande d’AutoCAD ?
Yes — prompts with clickable keywords, AutoComplete, aliases, @dx,dy and @d<a coordinate entry, direct distance entry, Enter/space/right-click to repeat, transparent commands and scripts.
Puis-je coter et hachurer des dessins ?
All DIM* commands with full DIMSTYLE variables, overrides and every arrowhead, associative dimensions that follow geometry; pick-point hatches with islands, patterns, solids and gradients.
Les agents IA peuvent-ils piloter CADCraft ?
Yes — every menu item, tool and prompt is a command. Agents can type at the command line exactly like a person, call any command with JSON, inspect the drawing to verify their work and render it, over MCP or the JSON control channel.
Puis-je tracer en PDF ?
Yes — paper-space layouts, viewports with scale and lock, page setups, and PLOT/EXPORTPDF straight from the browser; SVG and PNG export too.
Gère-t-il les calques et les types de ligne ?
A full Layers palette and Layer Properties Manager — on/off, freeze, lock, plot, colour, linetype and lineweight — plus layer tools like isolate, match and previous, and a Properties palette with per-object editing.
L’éditeur CAO fonctionne-t-il hors ligne ?
Yes. Install CADCraft as an app from your browser and the shell, the engine and your last drawing are cached on your device; drafting continues without a connection.
Mon dessin est-il envoyé quelque part ?
No. The editor runs in the tab; drawings open from and save back to your device. There is no server to upload to.
Est-ce 2D ou 3D ?
CADCraft today is a 2D drafting workstation — model space, paper-space layouts and viewports — with parametric constraints; 3D modelling is on the roadmap.
Quelles langues l’interface parle-t-elle ?
English, Ukrainian, Brazilian Portuguese, German, Spanish, Czech, Russian, French and Simplified Chinese, with live switching between them.
10 / La famille
Les apps Craft.
CADCraft is one of a family of open crafting tools.
Type L. Press Enter.
Un poste de DAO complet — dans un onglet, gratuitement.
Commencer à dessiner
